Example usage

To use imgcv in a project:

Transformations

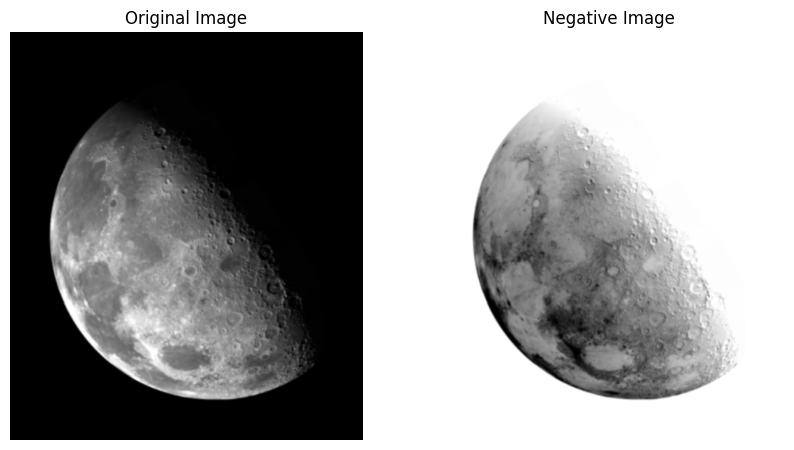

Negative Transformation

from imgcv.transformations.negative import negative_transform

im = Image.open("images/transformations/moon.tif")
im = np.array(im)
negative_im = negative_transform(im)

negative_im = Image.fromarray(negative_im)

plt.figure(figsize=(10, 10))
plt.subplot(1, 2, 1)
plt.imshow(im, cmap="gray")
plt.title("Original Image")
plt.axis("off")
plt.subplot(1, 2, 2)
plt.imshow(negative_im, cmap="gray")
plt.title("Negative Image")
plt.axis("off")
plt.show()

_images/b5b93ed53d2aa0bb406f2c3717248d3b261ac5a539eb36e1559468b2f98f15a6.png

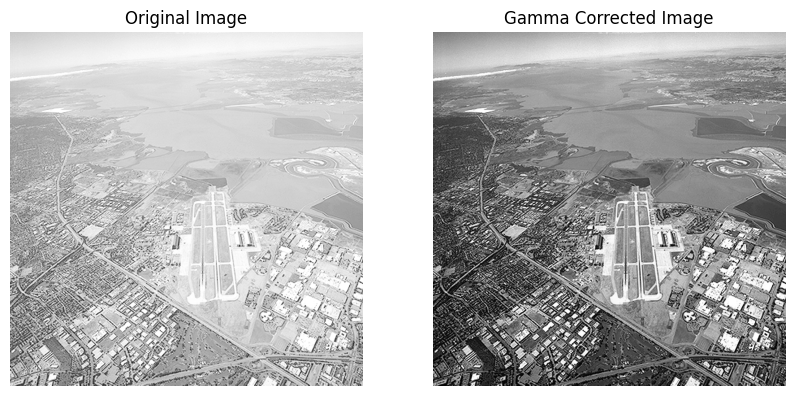

Power-Law (Gamma) Transformation

from imgcv.transformations.gamma import gamma_correction

im = Image.open("images/transformations/city.tif")
im = np.array(im)
gamma_im = gamma_correction(im, gamma=3)

gamma_im = Image.fromarray(gamma_im)

plt.figure(figsize=(10, 10))
plt.subplot(1, 2, 1)
plt.imshow(im, cmap="gray")
plt.title("Original Image")
plt.axis("off")
plt.subplot(1, 2, 2)
plt.imshow(gamma_im, cmap="gray")
plt.title("Gamma Corrected Image")
plt.axis("off")
plt.show()

_images/c4cd941b5f1f8d1c23492c849fac3c13a67a2980925c34a577788d9b761a87d3.png

Histogram Equalization

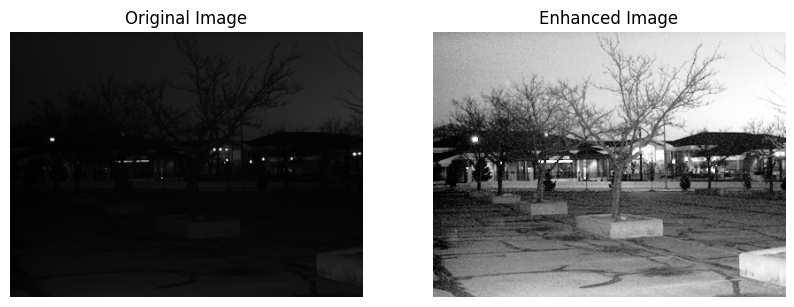

For Gray Scale Images

from imgcv.histogram.histogram_equalization import histogram_equalization

im = Image.open("images/uni_dark.png")
im = im.convert("L")
im = np.array(im)

equalized_im, _ = histogram_equalization(im)
equalized_im = Image.fromarray(equalized_im)

plt.figure(figsize=(10, 10))
plt.subplot(1, 2, 1)
plt.imshow(im, cmap="gray")
plt.title("Original Image")
plt.axis("off")
plt.subplot(1, 2, 2)
plt.imshow(equalized_im, cmap="gray")
plt.title("Enhanced Image")
plt.axis("off")
plt.show()

_images/d4bd3223e81a08ef0104d808ce2f81ac26ef41623d3b506b51ae95e8ac93cbcf.png

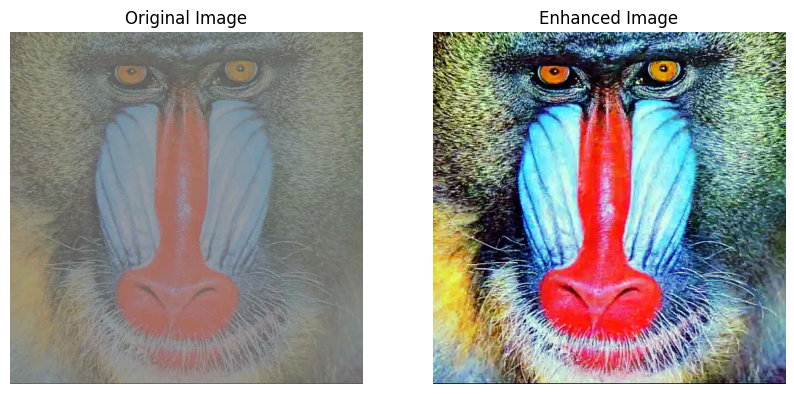

For Color Image

from imgcv.histogram.histogram_equalization import histogram_equalization

im = Image.open("images/monkey_faded.webp")
im = np.array(im)

equalized_im, _ = histogram_equalization(im)
equalized_im = Image.fromarray(equalized_im)

plt.figure(figsize=(10, 10))
plt.subplot(1, 2, 1)
plt.imshow(im)
plt.title("Original Image")
plt.axis("off")
plt.subplot(1, 2, 2)
plt.imshow(equalized_im)
plt.title("Enhanced Image")
plt.axis("off")
plt.show()

_images/840e3cc154bdedd85d8bd92f6a89425ae464bc04b7445bb27bc2725517353410.png

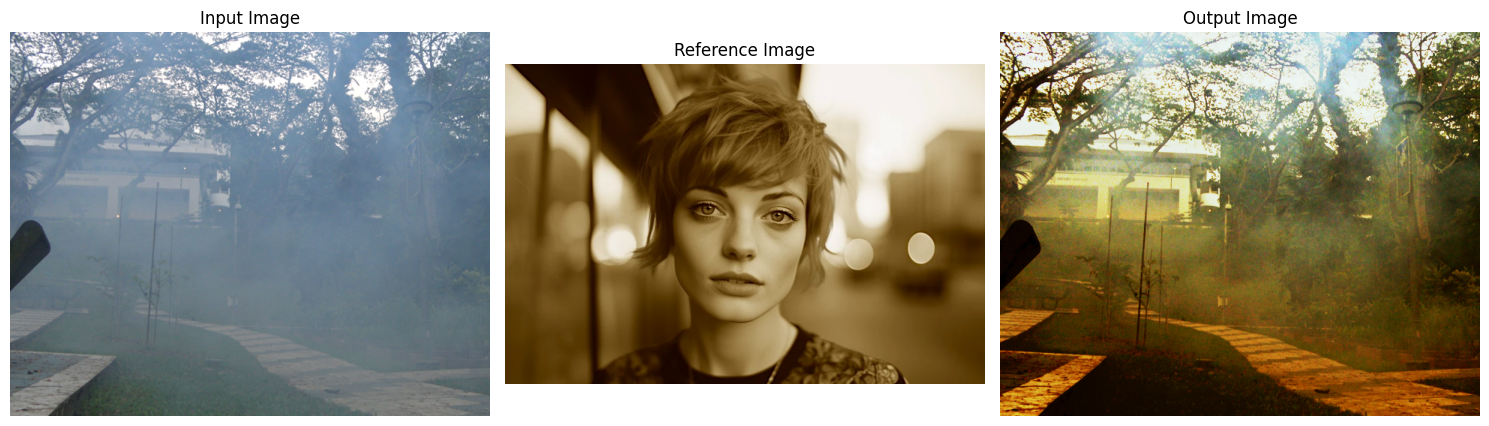

Histogram Matching/Specification

from imgcv.histogram.matching import matchHistogram

img = Image.open("images/park.png").convert("RGB")
ref_img = Image.open("images/pretty_girl.webp")

final_img, _, _ = matchHistogram(np.array(img), np.array(ref_img))

plt.figure(figsize=(15, 5))
plt.subplot(131)
plt.imshow(img, cmap='gray')
plt.title('Input Image')
plt.axis("off")
plt.subplot(132)
plt.imshow(ref_img, cmap='gray')
plt.title('Reference Image')
plt.axis("off")
plt.subplot(133)
plt.imshow(final_img, cmap='gray')
plt.title('Output Image')
plt.axis("off")
plt.tight_layout()
plt.show()

_images/35e8a5d543820cb7e5bc41a9f8dbbc63848743816a820ca808ba1dd46bdc7166.png

Filters in Spatial Domain

Linear Filters

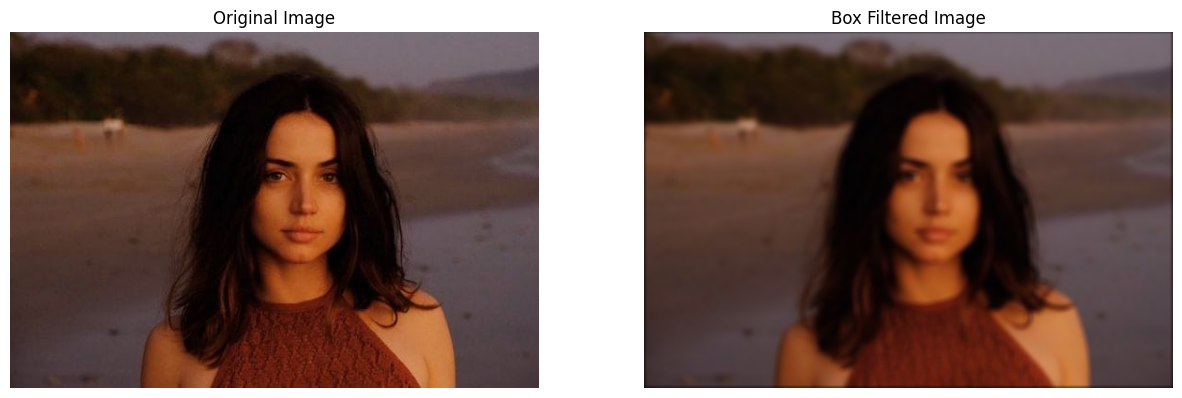

Mean / Average / Box Filter

from imgcv.filters.linear import box_filter

img = Image.open("images/alt.jpeg")
img = np.array(img)
smoothed_img = box_filter(img, filter_size=(7, 7))

fig, ax = plt.subplots(1, 2, figsize=(15, 10))
ax[0].imshow(img)
ax[0].set_title("Original Image")
ax[0].axis("off")
ax[1].imshow(smoothed_img)
ax[1].set_title("Box Filtered Image")
ax[1].axis("off")
plt.show()

_images/0edfa5deed39a2e6b7ceb596326e0e81a87cba87231577e649b16fe5a4212d35.png

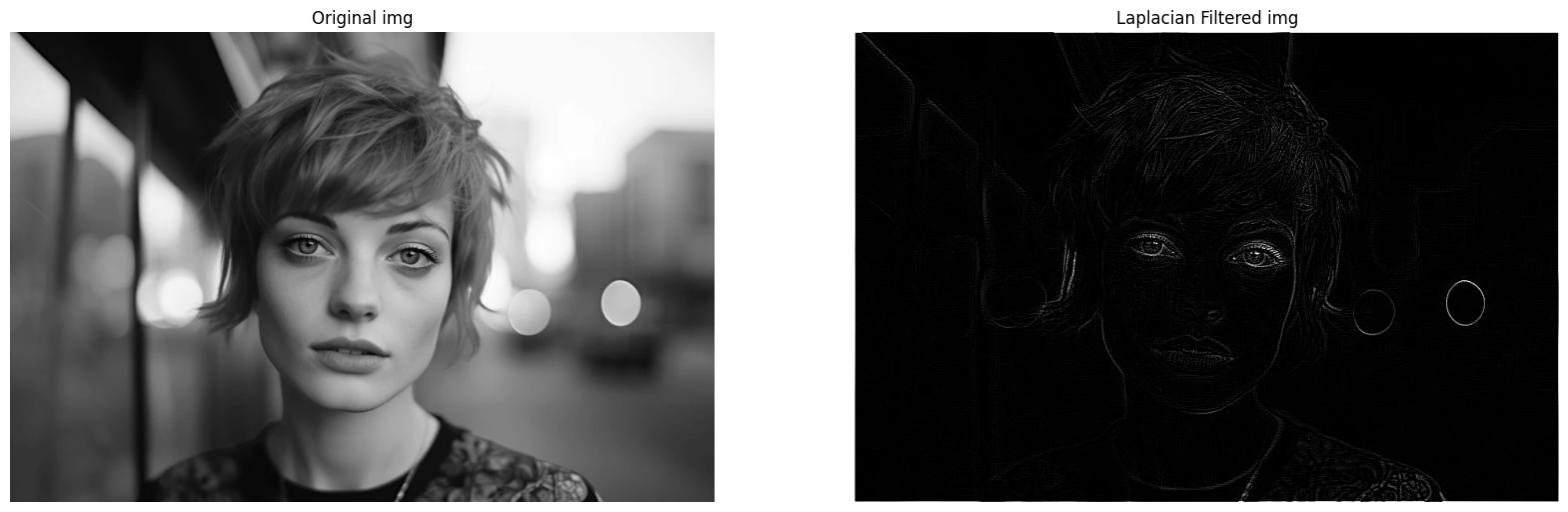

Laplacian Filter

Detecting Edges

from imgcv.filters.linear import laplacian_filter

img = Image.open("images/pretty_girl.webp").convert("L")
img = np.array(img)
laplacian_img = laplacian_filter(img, diagonal=True, return_edges=True)

fig, ax = plt.subplots(1, 2, figsize=(20, 10))
ax[0].imshow(img, cmap="gray")
ax[0].set_title("Original image")
ax[0].axis("off")
ax[1].imshow(laplacian_img, cmap="gray")
ax[1].set_title("Laplacian Filtered image")
ax[1].axis("off")
plt.show()

_images/99b356d54d9f33d20adfb979948bdfca68df93b56e829c7fc8cde38e80bd36e0.png

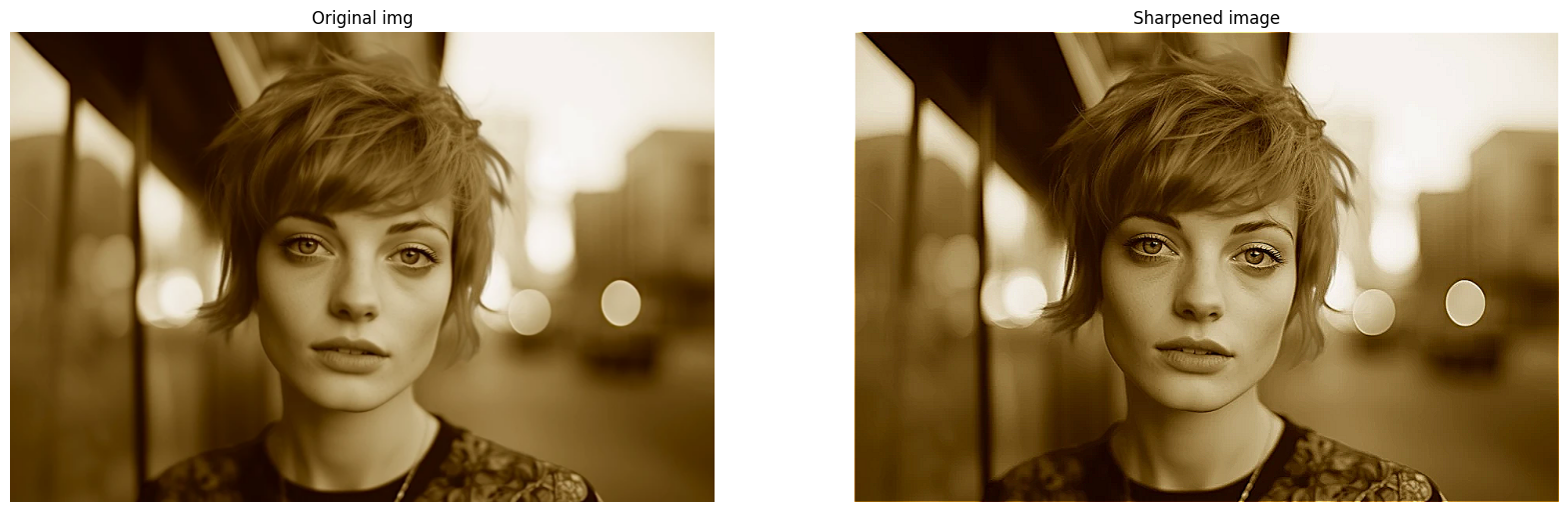

Sharpening Image

from imgcv.filters.linear import laplacian_filter

img = Image.open("images/pretty_girl.webp")
img = np.array(img)
sharpened_img = laplacian_filter(img, diagonal=False, return_edges=False)

fig, ax = plt.subplots(1, 2, figsize=(20, 10))
ax[0].imshow(img, cmap="gray")
ax[0].set_title("Original image")
ax[0].axis("off")
ax[1].imshow(sharpened_img, cmap="gray")
ax[1].set_title("Sharpened image")
ax[1].axis("off")
plt.show()

_images/627291295b5228d984e31c44619a06671b27340b031b6ed4fc57bcc10e09acd5.png

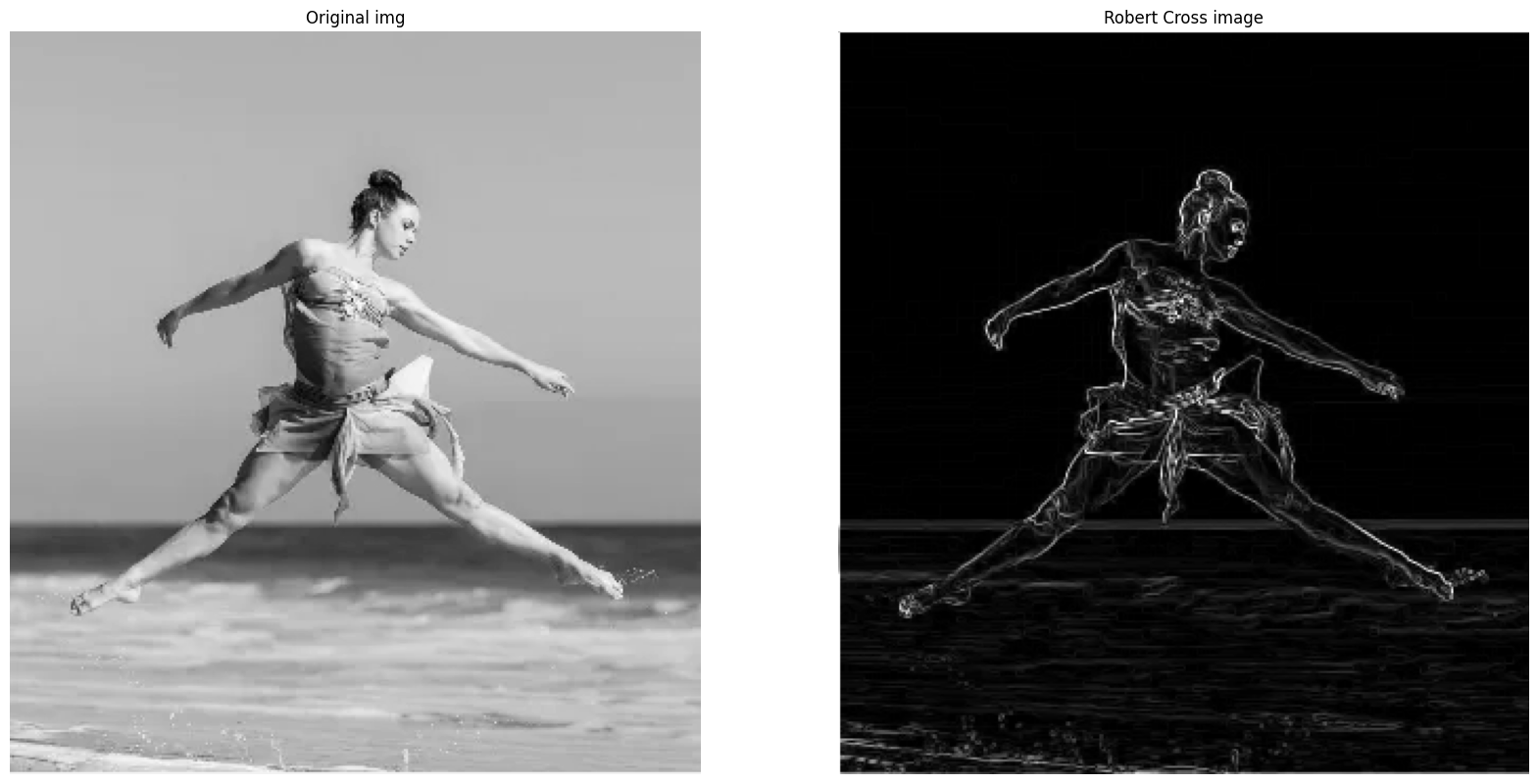

Robert Cross Operator

from imgcv.filters.linear import robert_cross_filter

img = Image.open("images/girl_jumping.webp").convert("L")
img = np.array(img)

robert_cross_img = robert_cross_filter(img)
fig, ax = plt.subplots(1, 2, figsize=(20, 10))
ax[0].imshow(img, cmap="gray")
ax[0].set_title("Original image")
ax[0].axis("off")
ax[1].imshow(robert_cross_img, cmap="gray")
ax[1].set_title("Robert Cross image")
ax[1].axis("off")
plt.show()

_images/61cb8a6d5d8fc8e22653a7e5d5dfe5c2fc95b9cdd9f9972a605cab9d21fc48bc.png

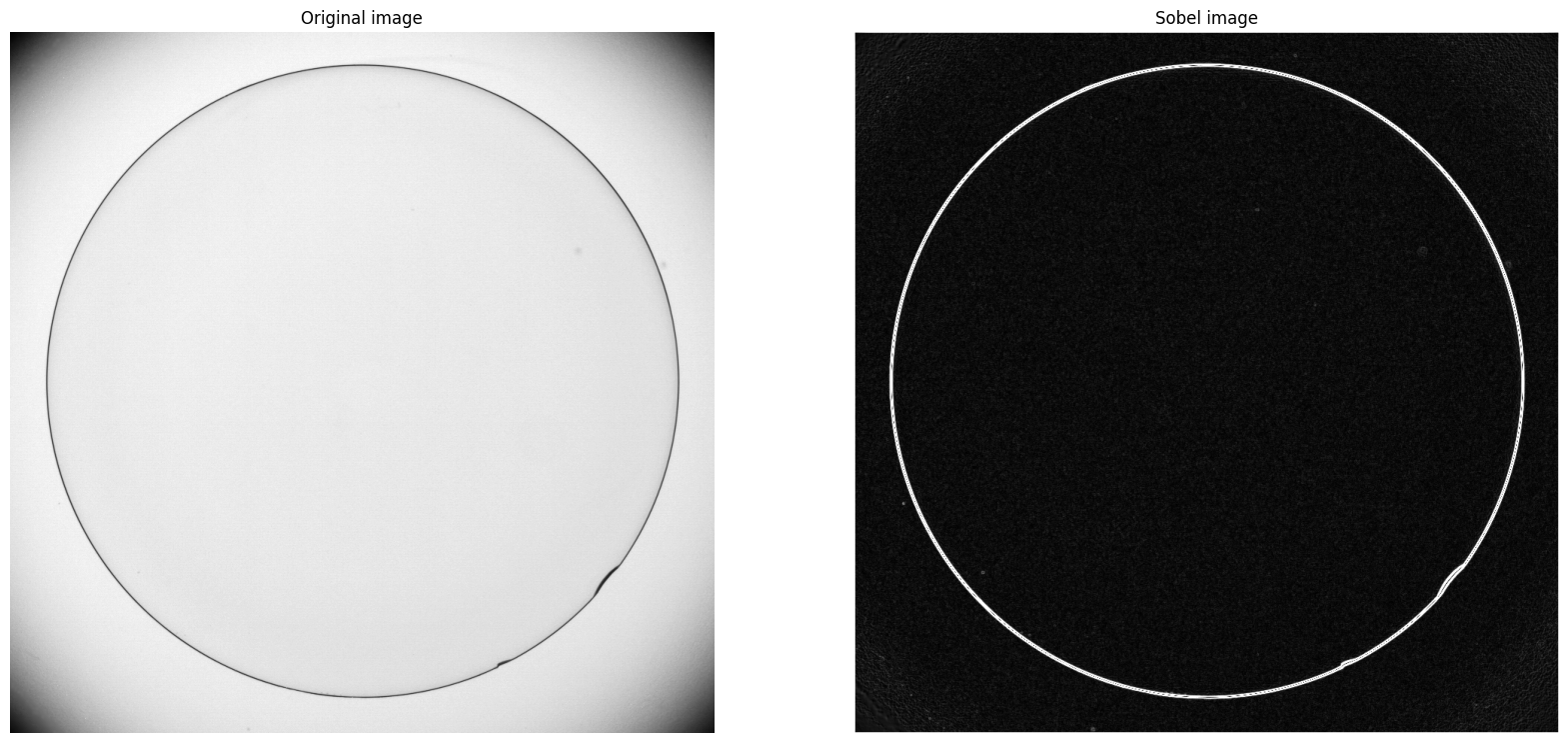

Sobel Filter

Sobel Filter can be used to detect defects in the image which is an preprocessing step in many image processing applications or in automated inspection systems. For example, in the image below, the defects are detected using Sobel Filter.

from imgcv.filters.linear import sobel_filter

img = Image.open("images/contact_lens.tif").convert("L")
img = np.array(img)

sobel_img = sobel_filter(img)
fig, ax = plt.subplots(1, 2, figsize=(20, 10))
ax[0].imshow(img, cmap="gray")
ax[0].set_title("Original image")
ax[0].axis("off")
ax[1].imshow(sobel_img, cmap="gray")
ax[1].set_title("Sobel image")
ax[1].axis("off")
plt.show()

_images/c6fac18db65689b78fa5a83c9aacbf868fc0c658503e017994fb321e9a3d1d1e.png

We can see two edge defect near 4 and 5 o’clock position.

Non-Linear Filters

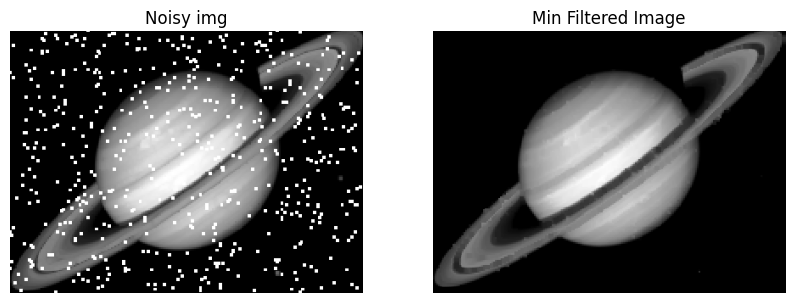

Min Filter

from imgcv.filters.non_linear import min_filter

img = Image.open("images/saturn_salt.png")
img = np.array(img)

reduced_noisy_img = min_filter(img, (5,5))

fig, ax = plt.subplots(1, 2, figsize=(10, 10))
ax[0].imshow(img, cmap="gray")
ax[0].set_title("Noisy img")
ax[0].axis("off")
ax[1].imshow(reduced_noisy_img, cmap="gray")
ax[1].set_title("Min Filtered Image")
ax[1].axis("off")
plt.show()

_images/b19547e03c339bce555101d576aaf0b37d06071177349af279af62b345e2aace.png

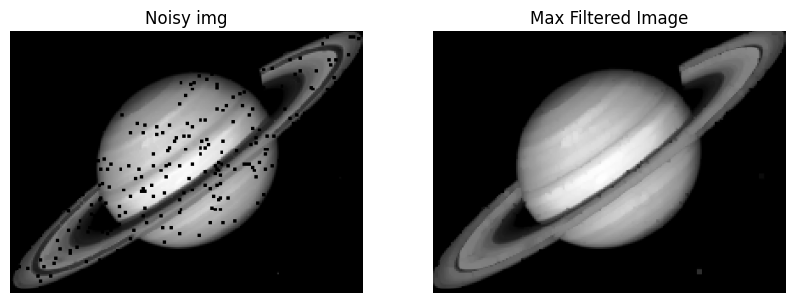

Max Filter

from imgcv.filters.non_linear import max_filter

img = Image.open("images/saturn_pepper.png")
img = np.array(img)

reduced_noisy_img = max_filter(img, (5,5))

fig, ax = plt.subplots(1, 2, figsize=(10, 10))
ax[0].imshow(img, cmap="gray")
ax[0].set_title("Noisy img")
ax[0].axis("off")
ax[1].imshow(reduced_noisy_img, cmap="gray")
ax[1].set_title("Max Filtered Image")
ax[1].axis("off")
plt.show()

_images/62e7ae14c456950d0c61959f02a330579d56bd9c1354c28220b62a3048f3f045.png

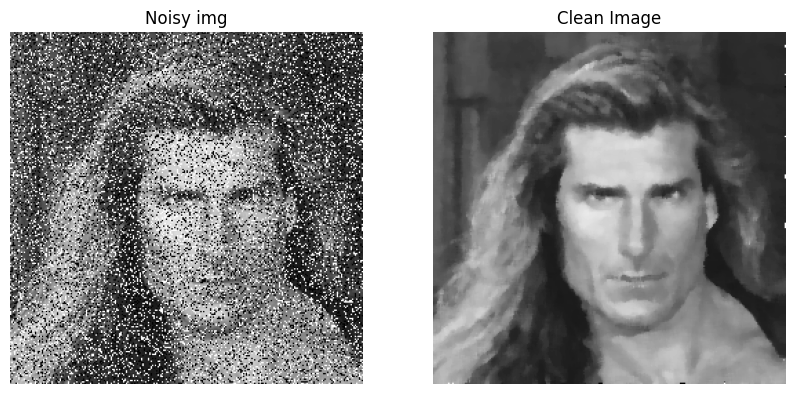

Median Filter

from imgcv.filters.non_linear import median_filter

img = Image.open("images/man_noisy.png")
img = np.array(img)

clean_image= median_filter(img, (5,5))

fig, ax = plt.subplots(1, 2, figsize=(10, 10))
ax[0].imshow(img, cmap="gray")
ax[0].set_title("Noisy img")
ax[0].axis("off")
ax[1].imshow(clean_image, cmap="gray")
ax[1].set_title("Clean Image")
ax[1].axis("off")
plt.show()

_images/7ffc8f2abe5bea3a385c20e57cfeb3bb2bf93e3ecd1e2ff2d46f5c74fede1f1e.png

Fourier Transform

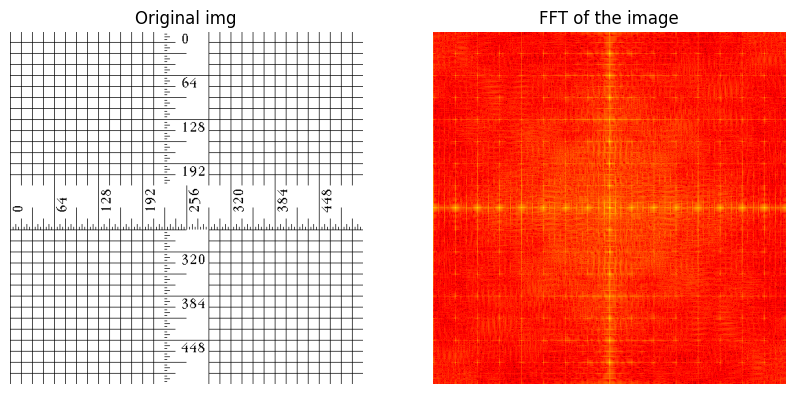

Convert Image to Frequency Domain

from imgcv.fftpack.fft import fft2, fftshift

img = Image.open("images/ruler.tiff")
img = np.array(img)

img_fft = fft2(img)
img_fft = fftshift(img_fft)
img_fft = np.log(1 + np.abs(img_fft)) # taking log so that we can get a better visualization

fig, ax = plt.subplots(1, 2, figsize=(10, 10))
ax[0].imshow(img, cmap="gray")
ax[0].set_title("Original img")
ax[0].axis("off")
ax[1].imshow(img_fft, cmap="hot")
ax[1].set_title("FFT of the image")
ax[1].axis("off")
plt.show()

_images/d9cc534336179d3ecd74f7d718cce2743d86d7ccfcb2b061f82b4b19ac85fbb2.png

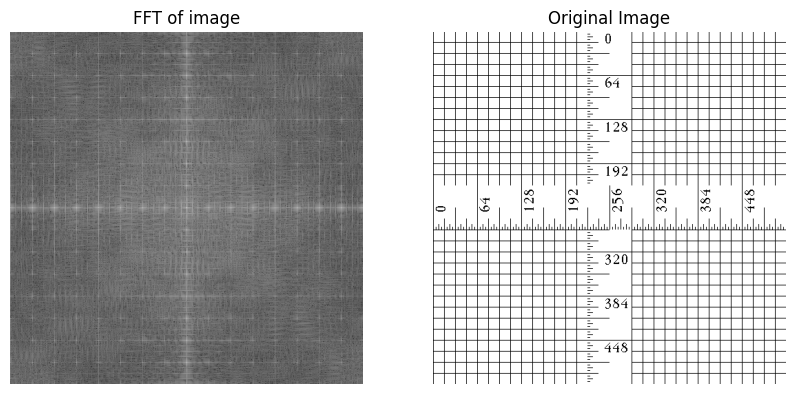

Convert FFT Image to Spatial Domain

from imgcv.fftpack.fft import fft, ifft2

img = Image.open("images/ruler.tiff")
img = np.array(img)

img_fft = fft2(img)
img_fft = fftshift(img_fft) # shifting doen't affect the ifft result.

img_ifft = ifft2(img_fft)
img_ifft = np.abs(img_ifft) # taking absolute value to remove any complex part

fig, ax = plt.subplots(1, 2, figsize=(10, 10))
ax[0].imshow(np.log(1 + np.abs(img_fft)), cmap="gray")
ax[0].set_title("FFT of image")
ax[0].axis("off")
ax[1].imshow(img_ifft, cmap="gray")
ax[1].set_title("Original Image")
ax[1].axis("off")
plt.show()

_images/30c7836cc449a134768dbb497995987c230b742bf60d0827b7bdfeff8af38503.png

Filters in Frequency Domain

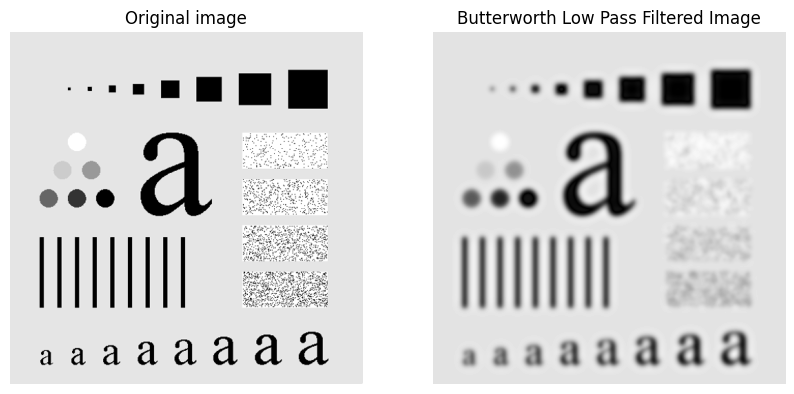

Low Pass Filter

from imgcv.filters.freq_domain import low_pass_filter

img = Image.open("images/bands.tif").convert("L")
img = img.resize((512, 512))
img = np.array(img)

low_pass_img = low_pass_filter(img,cutoff=30, order=2, type="butterworth", return_img_fft=False)

fig, ax = plt.subplots(1, 2, figsize=(10, 10))
ax[0].imshow(img, cmap="gray")
ax[0].set_title("Original image")
ax[0].axis("off")
ax[1].imshow(low_pass_img, cmap="gray")
ax[1].set_title("Butterworth Low Pass Filtered Image")
ax[1].axis("off")
plt.show()

_images/725b542be0d4d0dbb89843aab43973d948d487f0a7506148a38d2459a60b6e84.png

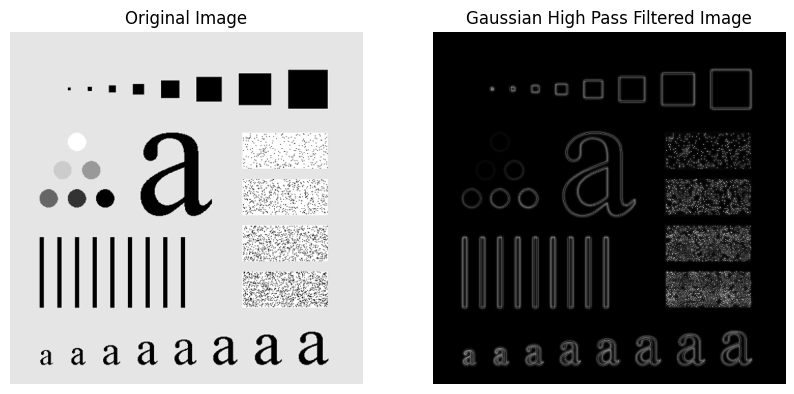

from imgcv.filters.freq_domain import high_pass_filter

img = Image.open("images/bands.tif").convert("L")
img = img.resize((512, 512))
img = np.array(img)

high_pass_img = high_pass_filter(img, cutoff=50, type="gaussian", return_img_fft=False)

fig, ax = plt.subplots(1, 2, figsize=(10, 10))
ax[0].imshow(img, cmap="gray")
ax[0].set_title("Original Image")
ax[0].axis("off")
ax[1].imshow(high_pass_img, cmap="gray")
ax[1].set_title("Gaussian High Pass Filtered Image")
ax[1].axis("off")
plt.show()

_images/8ff1efaf018f12e372608e3a4772caaafe85fa8f5923e96179cc7a593550d0e5.png
